50 HP Two Stage Premium Screw Air Compressor CTSII-50

CTS II – Series, a 2 Stage Screw Air Compressor Series to enhance the profitability of your production. The regulated speed models or VFD+ models save energy by matching the output to the plant air demand with an added advantage of High Efficiency internal Permanent Magnet Motors to ensure you do not lose out on efficiency anywhere.

Why Our Screw Air Compressor?

15% energy saving compared to single stage screw air compressor
Super premium efficiency IE5 Pm Motor
Vibration free quieter operation
Designed for hot climate
Service friendly design
Direct drive with low rpm
Advance PLC for easy operation
Lowest oil carry over
Lowest life cycle cost

2 Stage Compression for Highest Energy Savings

Compression in multi stages leads to lower compression ratio with added inter-stage cooling leading to least leakage of Air.
Benefits: Up to 15% Energy Savings.

High Capacity Intake Valve

It makes sure that abundance amount of Air is entering into the Air-end, with the least amount of noise.
Benefits: Lesser chances of electrical faults and breakdowns.

Air & Oil Cooler

Based on the Hot Climate of India, we provide Big size, high efficient Air & Oil Cooler which increases the durability of the Compressor.
Benefits: Better Cooling & better compressor life.

Seamless Pipelines

We use Seamless, long life Pipelines with best quality connections.
Benefits: Elimination of Oil Leakages.

PLC

Advanced microprocessor based control system with features such as online pressure, temperature and current measurement, safety settings, online maintenance indications. It also has a unique fan control system which eliminates use of thermostats in the compressor.
Benefits: Easy and Simple operation.

High Capacity Dual Air Filtration

Big Size, High efficient , dual filtering stage suction Air Filter for Dusty Environment of India with pre-filters, which reduces the intake of dust into the compressor.
Benefits: Lowest dust intake into the compressors.

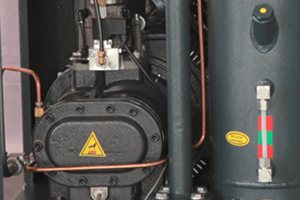

Oil Separation System

Two stage oil seperation system in which Oil is initially separated by Centrifugal force and minimal oil remains are then separated by separator element.
Benefits: Lowest Oil Carryover.

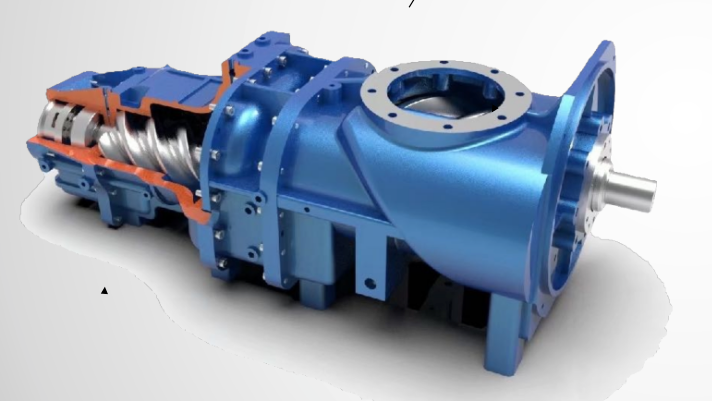

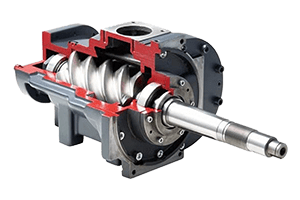

Best in Class Screw Profile

We use Premium quality Airend with high precision rotors, which operate at low RPM to provides best efficiency.
Benefits: High Efficiency Air Flow & longer life.

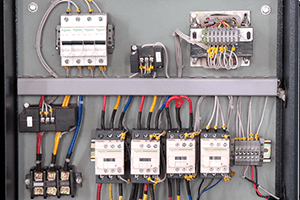

Control Panel

Control Panel / starter has been put in the cold zone which ensure long life operation. Switchgear and other electricals are also made of Siemens or standard quality.
Benefits: Lesser chances of electrical faults and breakdowns.

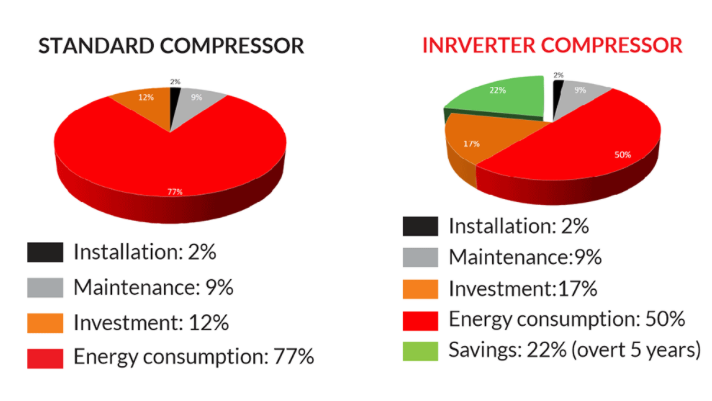

A revolution in energy saving VFD (Variable Frequency Drive) with PM Motor

With the motive to reduce the Energy cost in our Air Compressors, we use Energy saving Permanent Magnet Motors with VFD which decrease the Energy consumption substantially to save even more energy as well as money.

Power Saving with VSD

Low Starting Current: VSD ensures there will be no high current peak at the startup, as current increases gradually, which eliminates the use of heavy equipments to withstand the peaks.
Constant Outlet Pressure: Because of the narrow pressure band, the consumption at the peaks are omitted in comparison with Star Delta controls. This reduces energy consumption and provides a stable pressure.
Low Maintenance: Due to VSD, the average RPM of the compressor also reduces, which means lesser wear & tear and results into less maintenance.
High Savings Under Fluctuating Requirement: During Low requirement, VSD reduces the speed of motor resulting in low energy consumption. The compressor will consume just the energy for the required air it produces.

Why PM Motor?

Interior PM (IPM) Motor Efficiency upto 94.5%, which outperforms IE5 efficiency level
On Average 20% Lower specific Energy Requirement than the current VSD models
On top of energy savings, Free Air Delivery (FAD) increase up to 12% over the range

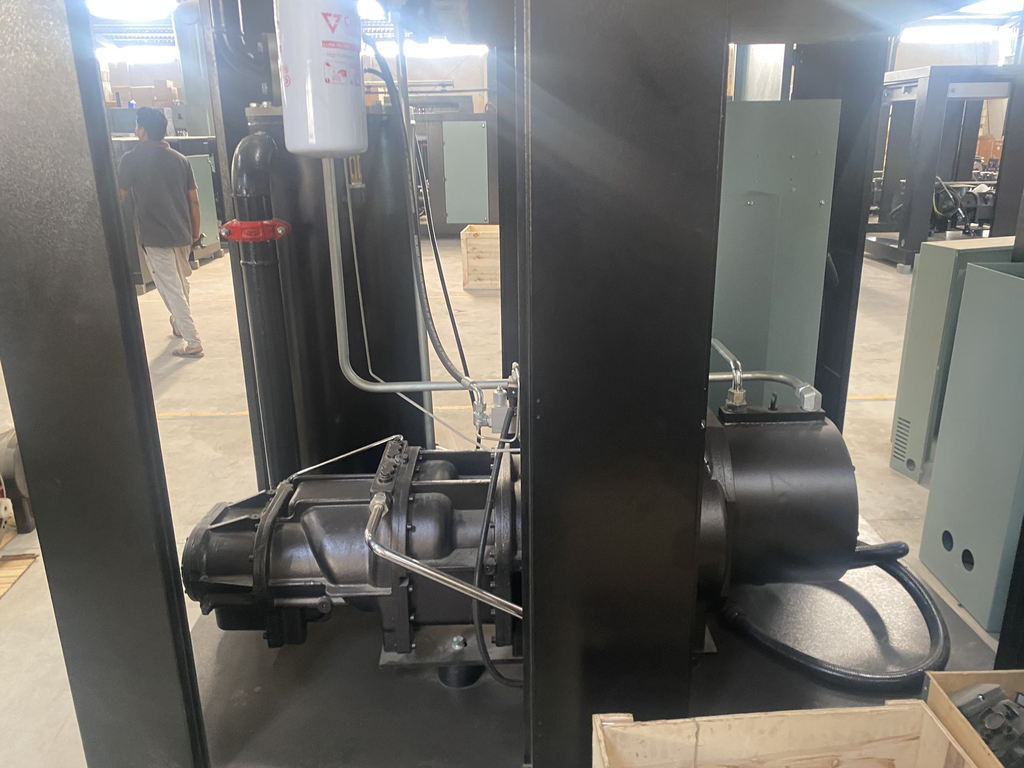

Compact small in size IPM motor has no bearings which means no wearing parts, no maintenance on motor side and no gears or belts, leading to a Transmission Efficiency of 100%

Power
Motor Power (HP)	50 HP
Motor Power (kW)	37 kW

Free Air Delivery
Free Air Delivery at 6 Bar (CFM)	-
Free Air Delivery at 8 Bar (CFM)	279 CFM
Free Air Delivery at 10 Bar (CFM)	252 CFM
Free Air Delivery at 13 Bar (CFM)	-

Others
Working Pressure (Bar)	8 Bar, 10 Bar
Operation Mode	Variable Speed Drive (VFD/VSD)
Motor Type	Oil Cooled PM Motor (IE5)
Remote Monitoring & Predictive Maintenance	Enabled with IOT
Transmission Type	Direct Driven 3600 RPM (Max.)
Sound Level (DB)	73 DB
Dimensions (LxWxH in cms)	145x89x147 cms
Weight (kg)	970 kg
