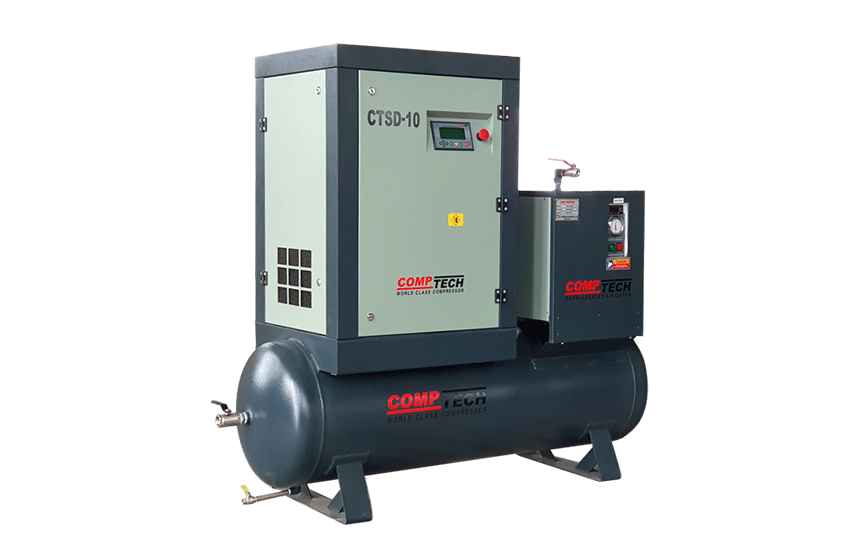

10 HP Single Stage Screw Air Compressor CTSD-10 / TAS
Our Rotary Screw Air Compressor available in Standard Fix Models and VFD Models. We use PM Motor with our VFD Models, which decrease the energy consumption substantially to save even more energy as well as money.
Why Our Screw Air Compressor?
- Super premium efficiency IE5 Pm Motor
- Vibration free quieter operation
- Designed for hot climate
- Service friendly design
- Direct drive with low rpm
- Advance PLC for easy operation
- Lowest oil carry over
- Lowest life cycle cost
Energy Saving 1:1 Direct Drive
- 1:1 Direct drive reduces number of components needed in gear drive or Belt Drive, increasing reliability and durability through elimination of wear & transmission loss.
- Benefits: Low maintenance & no transmission loss
Air & Oil Cooler
- Based on the Hot Climate of India, we provide Big size, high efficient Air & Oil Cooler which increases the durability of the Compressor.
- Benefits: Better Cooling & better compressor life.
Seamless Pipelines
- We use Seamless, long life Pipelines with best quality connections.
- Benefits: Elimination of Oil Leakages.
PLC
- Advanced microprocessor based control system with features such as online pressure, temperature and current measurement, safety settings, online maintenance indications. It also has a unique fan control system which eliminates use of thermostats in the compressor.
- Benefits: Easy and Simple operation.
High Capacity Dual Air Filtration
- Big Size, High efficient , dual filtering stage suction Air Filter for Dusty Environment of India with pre-filters, which reduces the intake of dust into the compressor.
- Benefits: Lowest dust intake into the compressors.
Oil Separation System
- Two stage oil seperation system in which Oil is initially separated by Centrifugal force and minimal oil remains are then separated by separator element.
- Benefits: Lowest Oil Carryover.

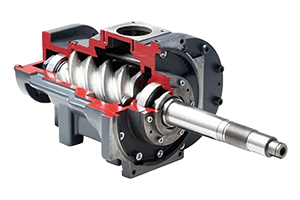

Best in Class Screw Profile
- We use Premium quality Airend with high precision rotors, which operate at low RPM to provides best efficiency.
- Benefits: High Efficiency Air Flow & longer life.

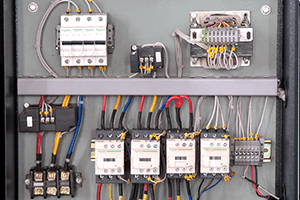

Control Panel
- Control Panel / starter has been put in the cold zone which ensure long life operation. Switchgear and other electricals are also made of Siemens or standard quality.
- Benefits: Lesser chances of electrical faults and breakdowns.
A revolution in energy saving VFD (Variable Frequency Drive) with PM Motor
- With the motive to reduce the Energy cost in our Air Compressors, we use Energy saving Permanent Magnet Motors with our VFD models which decrease the Energy consumption substantially to save even more energy as well as money.
Power Saving with VSD
- Low Starting Current: VSD ensures there will be no high current peak at the startup, as current increases gradually, which eliminates the use of heavy equipments to withstand the peaks.
- Constant Outlet Pressure: Because of the narrow pressure band, the consumption at the peaks are omitted in comparison with Star Delta controls. This reduces energy consumption and provides a stable pressure.
- Low Maintenance: Due to VSD, the average RPM of the compressor also reduces, which means lesser wear & tear and results into less maintenance.
- High Savings Under Fluctuating Requirement: During Low requirement, VSD reduces the speed of motor resulting in low energy consumption. The compressor will consume just the energy for the required air it produces.
Why PM Motor?
- Interior PM (IPM) Motor Efficiency upto 94.5%, which outperforms IE4/IE5 efficiency level
- On Average 20% Lower specific Energy Requirement than the current VSD models
- On top of energy savings, Free Air Delivery (FAD) increase up to 12% over the range
- Compact small in size IPM motor has no bearings which means no wearing parts, no maintenance on motor side and no gears or belts, leading to a Transmission Efficiency of 100%
Specifications
| Power | |
|---|---|
| Motor Power (HP) | 10 HP |
| Motor Power (kW) | 7.5 kW |
| Free Air Delivery | |
|---|---|
| Free Air Delivery at 7 Bar (CFM) | 43 CFM |
| Free Air Delivery at 8 Bar (CFM) | 40 CFM |
| Free Air Delivery at 10 Bar (CFM) | 35 CFM |
| Free Air Delivery at 13 Bar (CFM) | 24 CFM |
| Others | |
|---|---|
| Operation Mode | Star Delta, Variable Speed Drive (VFD/VSD) |
| Motor Type | Induction Motor (IE4), PM Motor (IE5), Oil Cooled PM Motor (IE5) |
| Remote Monitoring & Predictive Maintenance | Without IOT, Enabled with IOT |
| Working Pressure (Bar) | 7 Bar, 8 Bar, 10 Bar, 13 Bar |

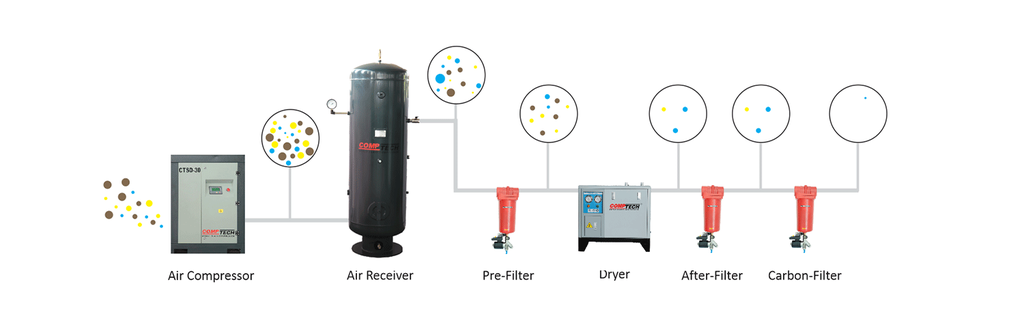

| Line Filters | Pre Filter, After Filter, Carbon FIlter |
| Air Receiver Size (Liters) | 175 Liters, 250 Liters, 300 Liters, 500 Liters |
| Transmission Type | Direct Driven 3600 RPM (Max.) |
| Sound Level (DB) | 68 DB |
| Dryer | Integrated Dryer |
| Mounting Type | Tank / Receiver Mounted |
